IMPLEMENTATION OF SYMBOL TABLE USING C (WITH OUTPUT)

AIM:
To write a program for implementing Symbol Table using C.



ALGORITHM:

Step1:
Start the program for performing insert, display, delete, search and modify option in symbol table
Step2: Define the structure of the Symbol Table
Step3: Enter the choice for performing the operations in the symbol Table
Step4: If the entered choice is 1, search the symbol table for the symbol to be inserted. If the symbol is
already present, it displays “Duplicate Symbol”. Else, insert the symbol and the corresponding address in
the symbol table.
Step5: If the entered choice is 2, the symbols present in the symbol table are displayed.
Step6: If the entered choice is 3, the symbol to be deleted is searched in the symbol table.
Step7: If it is not found in the symbol table it displays “Label Not found”. Else, the symbol is deleted.
Step8: If the entered choice is 5, the symbol to be modified is searched in the symbol table.



PROGRAM CODE:
//Implementation of symbol table
#include<stdio.h>
#include<ctype.h>
#include<stdlib.h>
#include<string.h>
#include<math.h>
void main()
{
 int i=0,j=0,x=0,n;
 void *p,*add[5];
 char ch,srch,b[15],d[15],c;
 printf("Expression terminated by $:");
 while((c=getchar())!='$')
 {
  b[i]=c;
  i++;
 }
 n=i-1;
 printf("Given Expression:");
 i=0;
 while(i<=n)
 {
  printf("%c",b[i]);
  i++;
 }
 printf("\n Symbol Table\n");
 printf("Symbol \t addr \t type");
 while(j<=n)
 {
  c=b[j];
  if(isalpha(toascii(c)))
  {
   p=malloc(c);
   add[x]=p;
   d[x]=c;
   printf("\n%c \t %d \t identifier\n",c,p);
   x++;
   j++;
  }
  else
  {
   ch=c;
   if(ch=='+'||ch=='-'||ch=='*'||ch=='=')
   {
    p=malloc(ch);
    add[x]=p;
    d[x]=ch;
    printf("\n %c \t %d \t operator\n",ch,p);
    x++;
    j++;
   }}}}

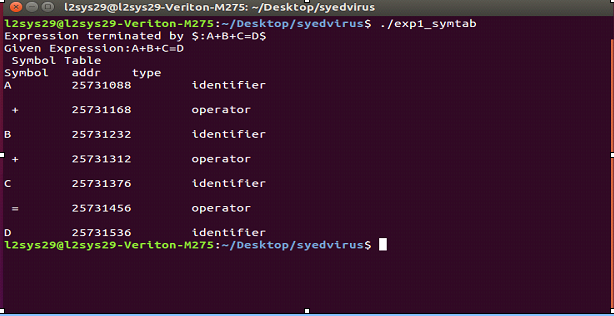

OUTPUT:






RESULT:

Thus the program for symbol table has been executed successfully.





Comments

  1. If a=a+5 what is the address of a in symbol table?

    ReplyDelete
    Replies
    1. This comment has been removed by a blog administrator.

      Delete
    2. The address of symbol 'a' will be generated by malloc() and should remain the same when updated--only modifying its value.

      Delete
  2. This comment has been removed by a blog administrator.

    ReplyDelete
